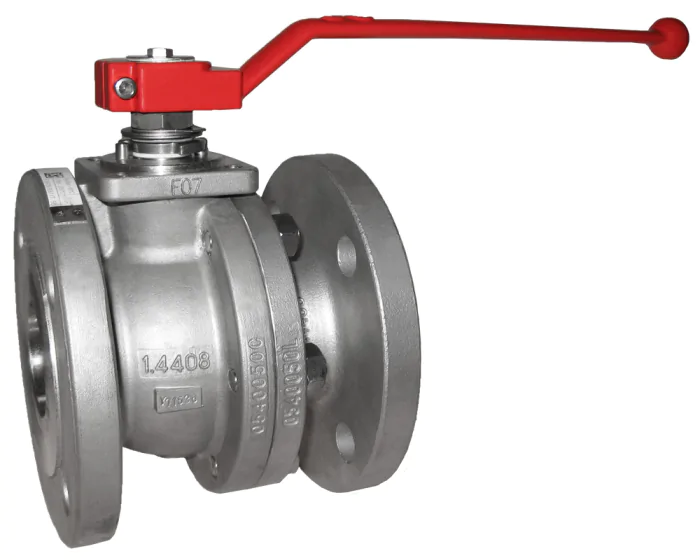

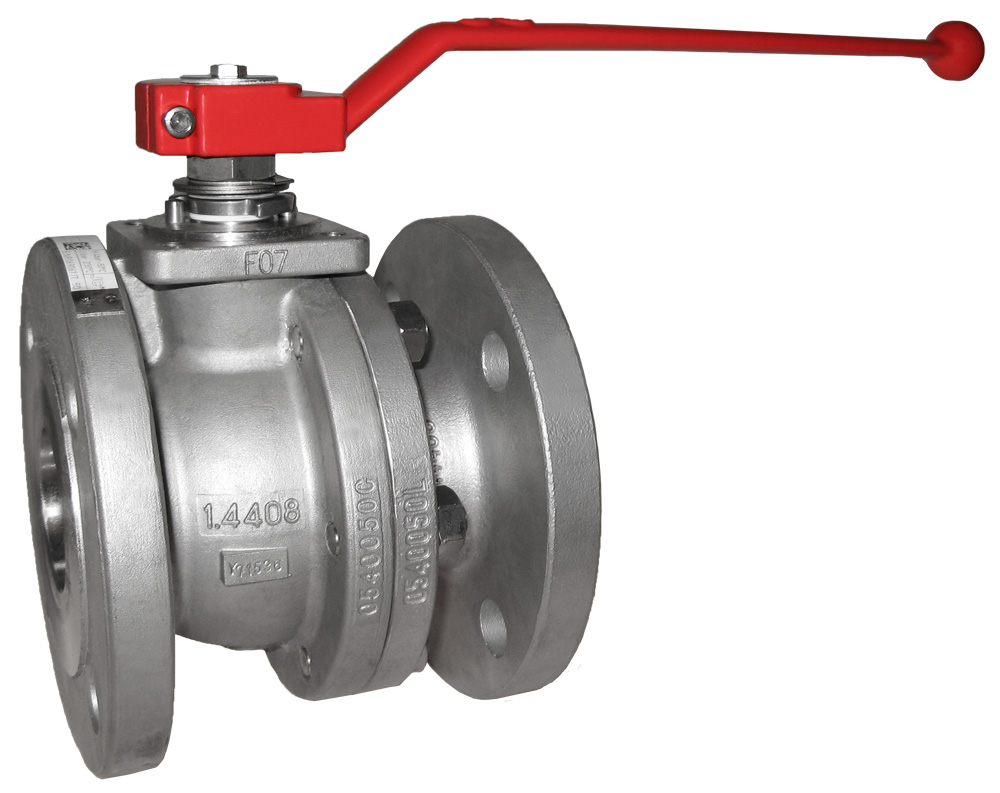

516IIS stainless steel ball valve RF PN16/40 DN65
€764.24(excl. btw)
Flanged ball valve with floating ballBody in stainless steel 1.4408Ball in stainless steel A 351 Gr. CF8MSeats in StansitMax. working pressure: 40 bar (DN 15 to DN 50), 16 bar (DN 65 to DN 200)Face to face: EN558-1 series 27Connection: flanged PN 16/40 (DN 15 to DN 50), PN 16 (DN 65 to DN 200)ISO mounting flangeFire safe according to ISO 10497With lever in A 216 Gr. WCB (free stem from DN 200)
In stock Subject prior to sales
Categories :
Kogelkranen
Flanged ball valve with floating ball Body in stainless steel 1.4408 Ball in stainless steel A 351 Gr. CF8M Seats in Stansit Max. working pressure: 40 bar (DN 15 to DN 50), 16 bar (DN 65 to DN 200) Face to face: EN558-1 series 27 Connection: flanged PN 16/40 (DN 15 to DN 50), PN 16 (DN 65 to DN 200) ISO mounting flange Fire safe according to ISO 10497 With lever in A 216 Gr. WCB (free stem from DN 200)
Specification
Value
DN
DN65 - 2''1/2
